- Capacity: 2500 kg x 0.5 kg/ 5000 lb x 1 lb
- Platform size 1219 x 1219 mm/ 48″ x 48″
- Construction– mild steel with powder coat paint finish. 6 mm/ 0.25 inch
- Power– internal rechargeable battery or ac adapter (both included)
- Display– 17 mm/ 0.7 inch
About Us: 250 Years of History
Brecknell, part of Avery Weigh-Tronix, a proud member of the Illinois Tool Works (ITW) company, celebrated 250 years of customer commitment and history in 2011. Founded in 1761, Brecknell has grown to become a global leader in weighing solutions. Brecknell products are designed and constructed with focus on high-value solutions and accuracy for easy operation for all your weighing applications.
Today Brecknell products can be found in most weighing applications. The Brecknell global footprint and reach allows Brecknell to offer the highest quality of service and support to our global customers.

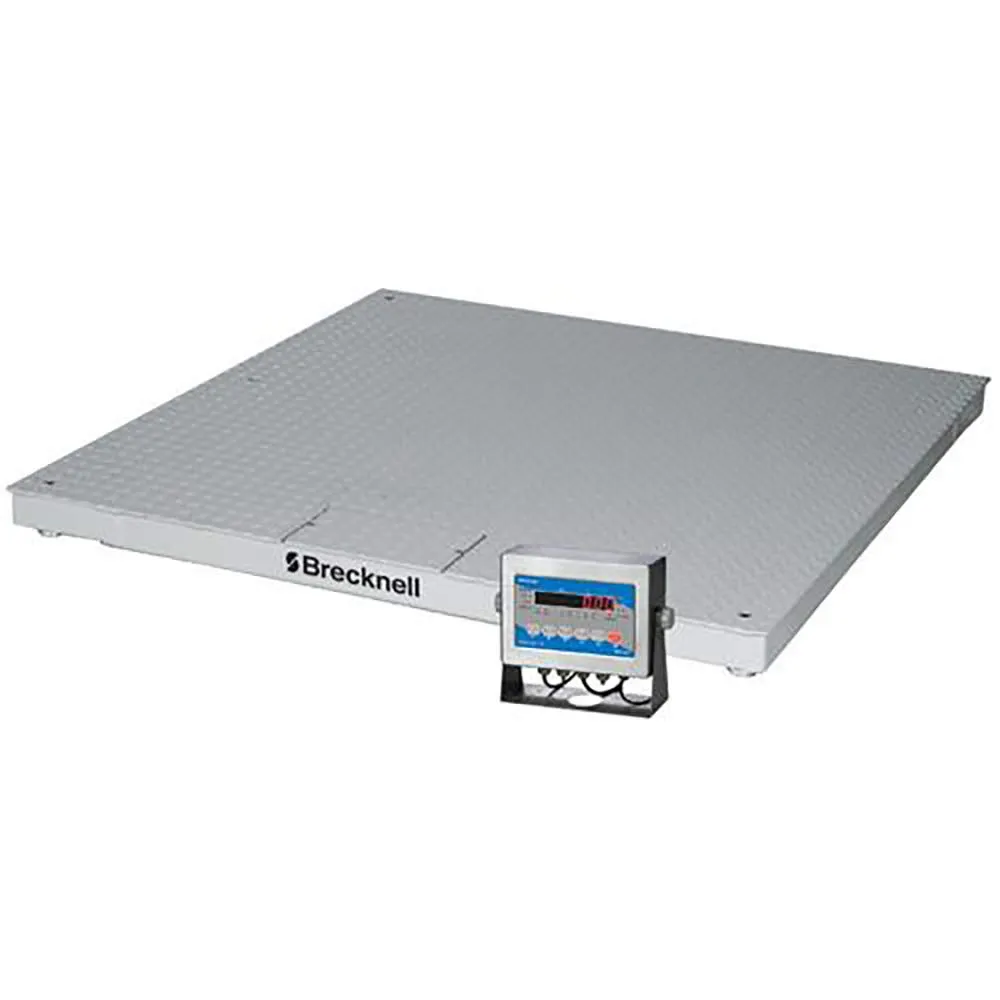

DCSB Floor Scale System
Calibrated with SBI-521 LED Indicator
• Easy Installation– Units can be placed into service with no on-site installation required
• Portable– Attached handle allows for easy transport
• A/D Conversion Rate–Up to 25 measurements per second
• Available in 2 sizes and 2 Capacities
• Capacity: 10,000 x 2 lb
• Dimensions: 48" x 48" x 3.1"
Floor Scale Specifications
Accuracy: NTEP at 5000 divisions, Class III
J-Box Access: Top access for easy installation and service
Leveling Feet: Four top access holes for a quick installation
Threaded Eye Bolts: Two threaded top access eye-bolt holes for easy mobility and pit service
Corner Protection: Closed corners to prevent damage to leveling feet while installing the scale
Floor Scale Material:Construction: Mild steel 0.25 inch deck with safety tread,
Finish: Powder coat paint
Interface Cable Length: 4.5 mm / 15' with tinned leads (included)
Rated: IP65
J-Box Construction: Stainless steel
Load Cell Material: Alloy tool steel potted
Load Cell Rated Output: 3mv/V
Load Cell Output Resistance: 350 ohm
Overload Protection: 150% of rated capacity
End Loading: 100% of rated capacity
Operating Temperature: -10° C to 40° C / 14° F to 104° F
Certifications: NTEP COC #02-070
- Package Dimensions : 55 x 55 x 8 inches; 265 Pounds
- Department : unisex-adult
- Batteries : 1 Product Specific batteries required. (included)
- Date First Available : August 2, 2017
- Manufacturer : Sachem Brand Group -
