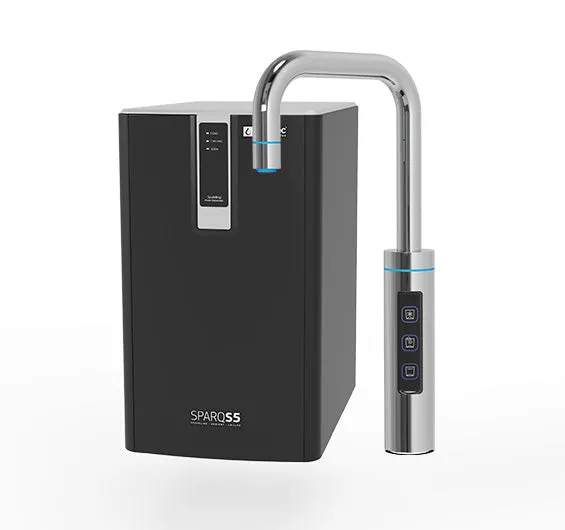

Puretec SPARQ S5 Instant Sparkling & Chilled Water Filter System (100 Cup/Hour)
| Download Spec Sheet | Download Product Brochure | Download User Guide |
- Sparkling, chilled & ambient water

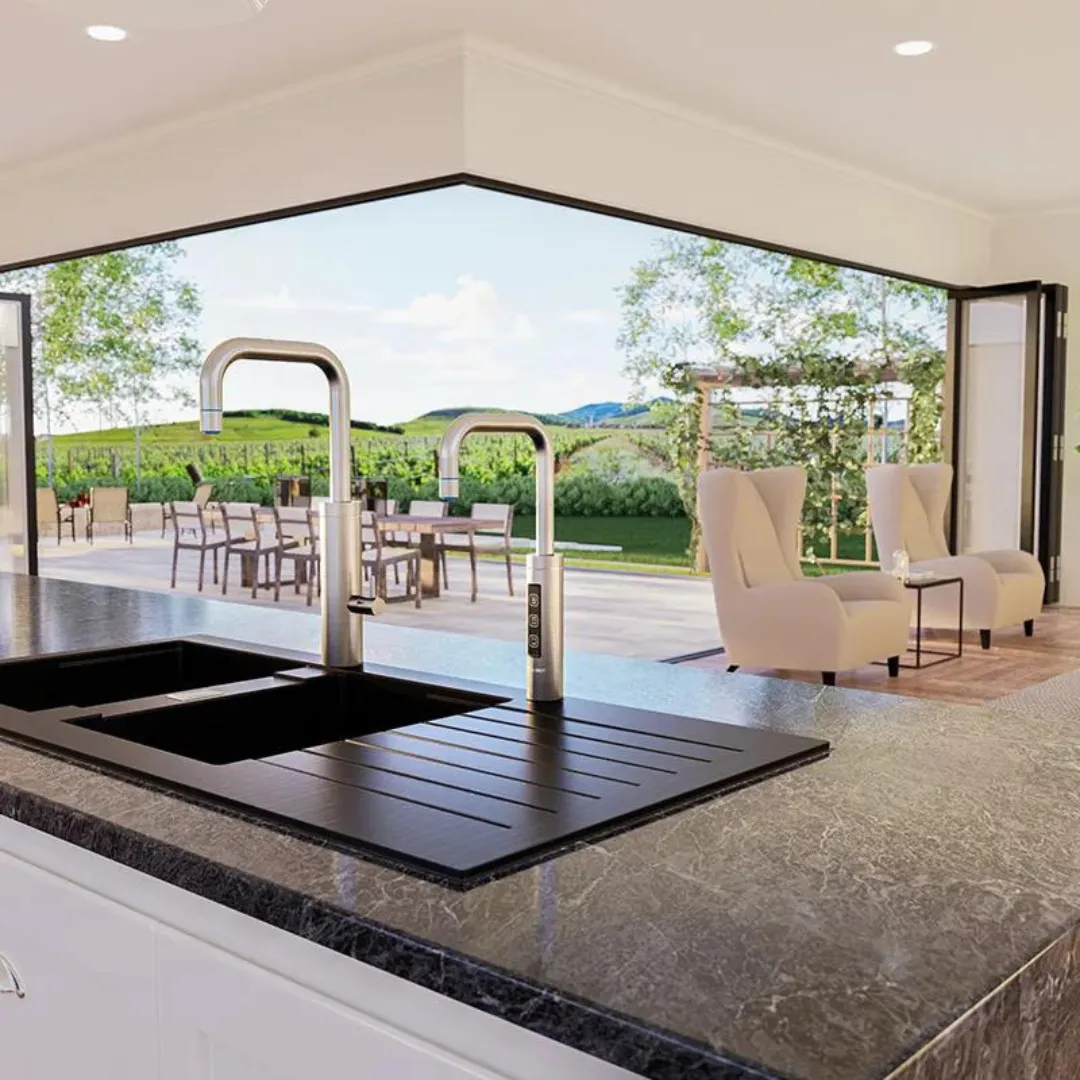

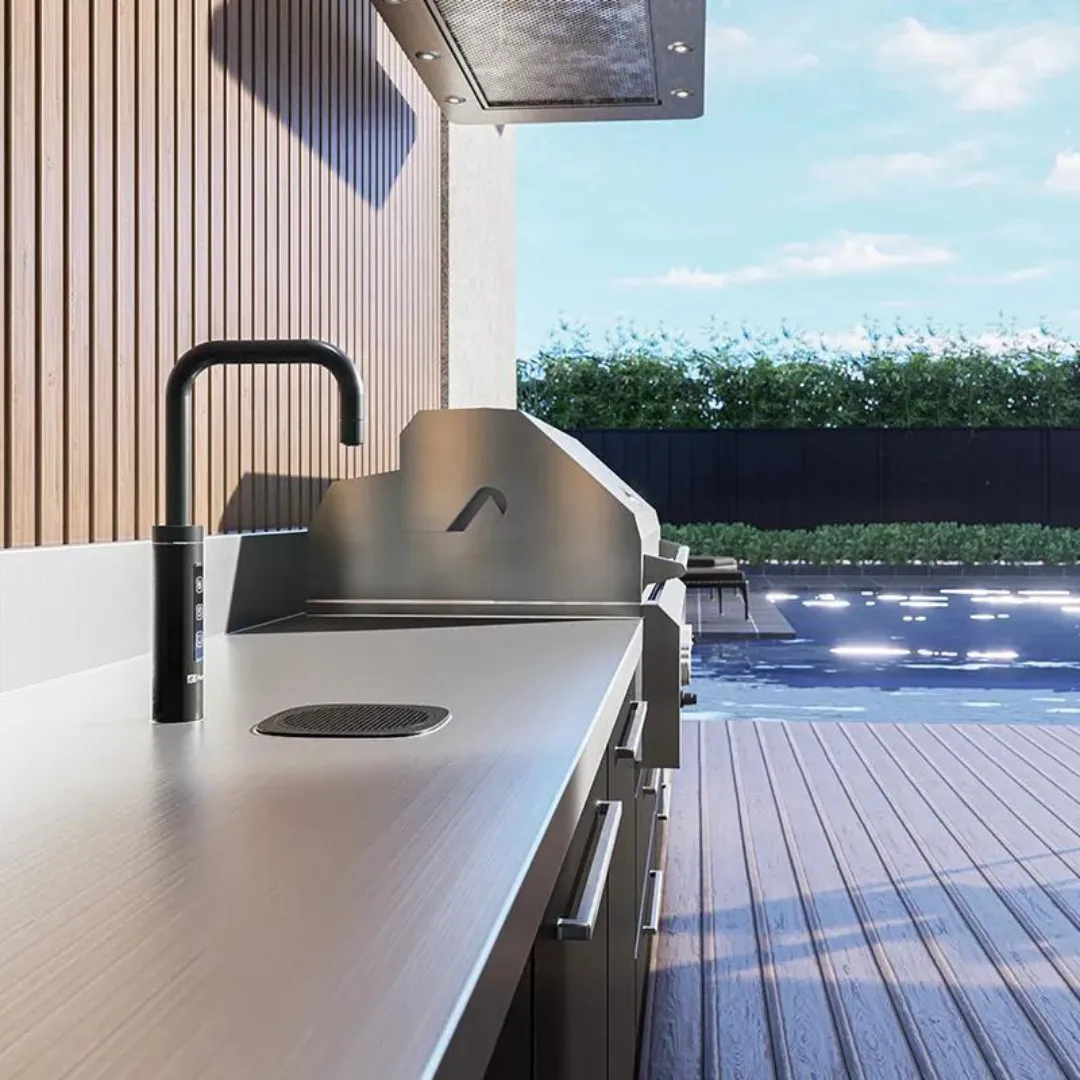

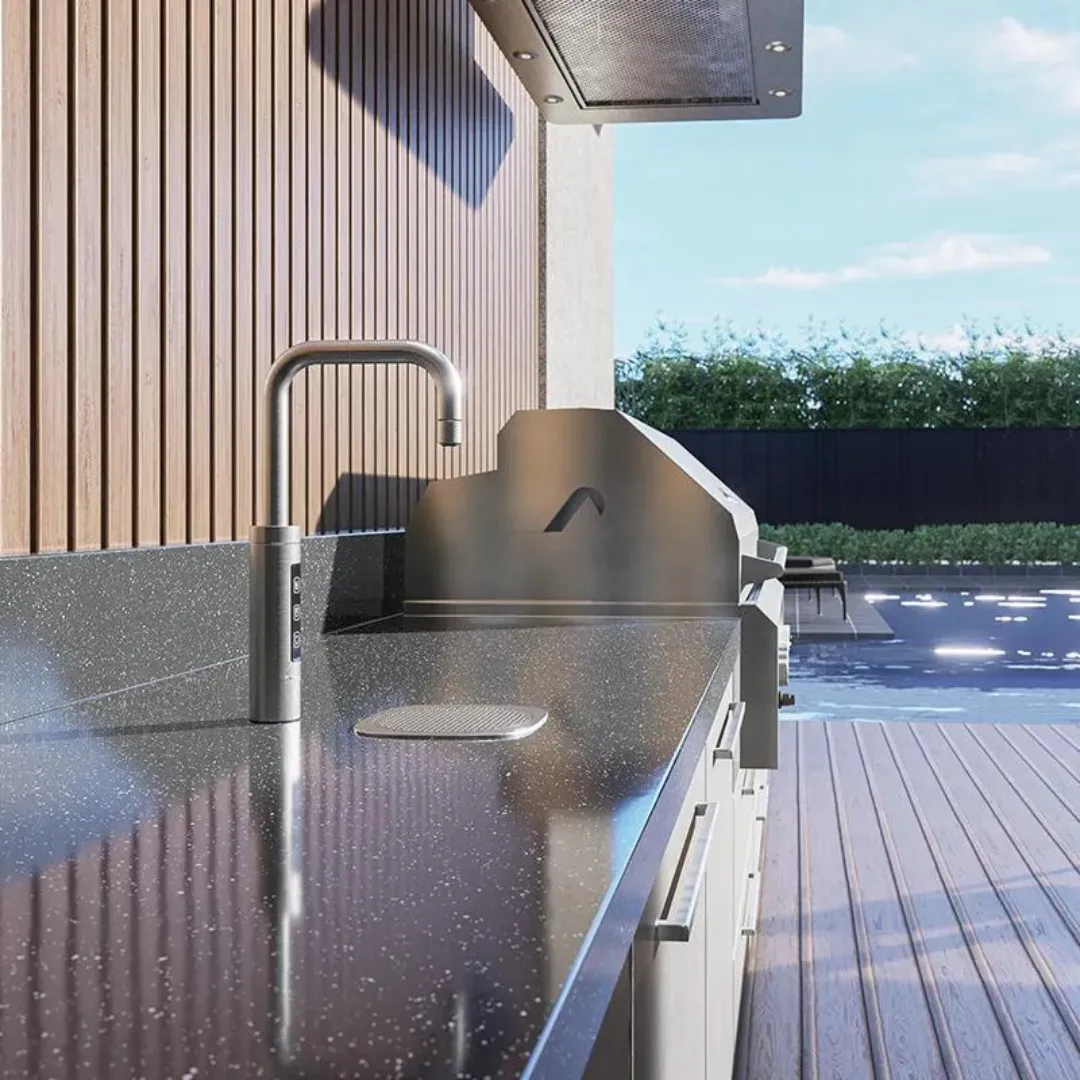

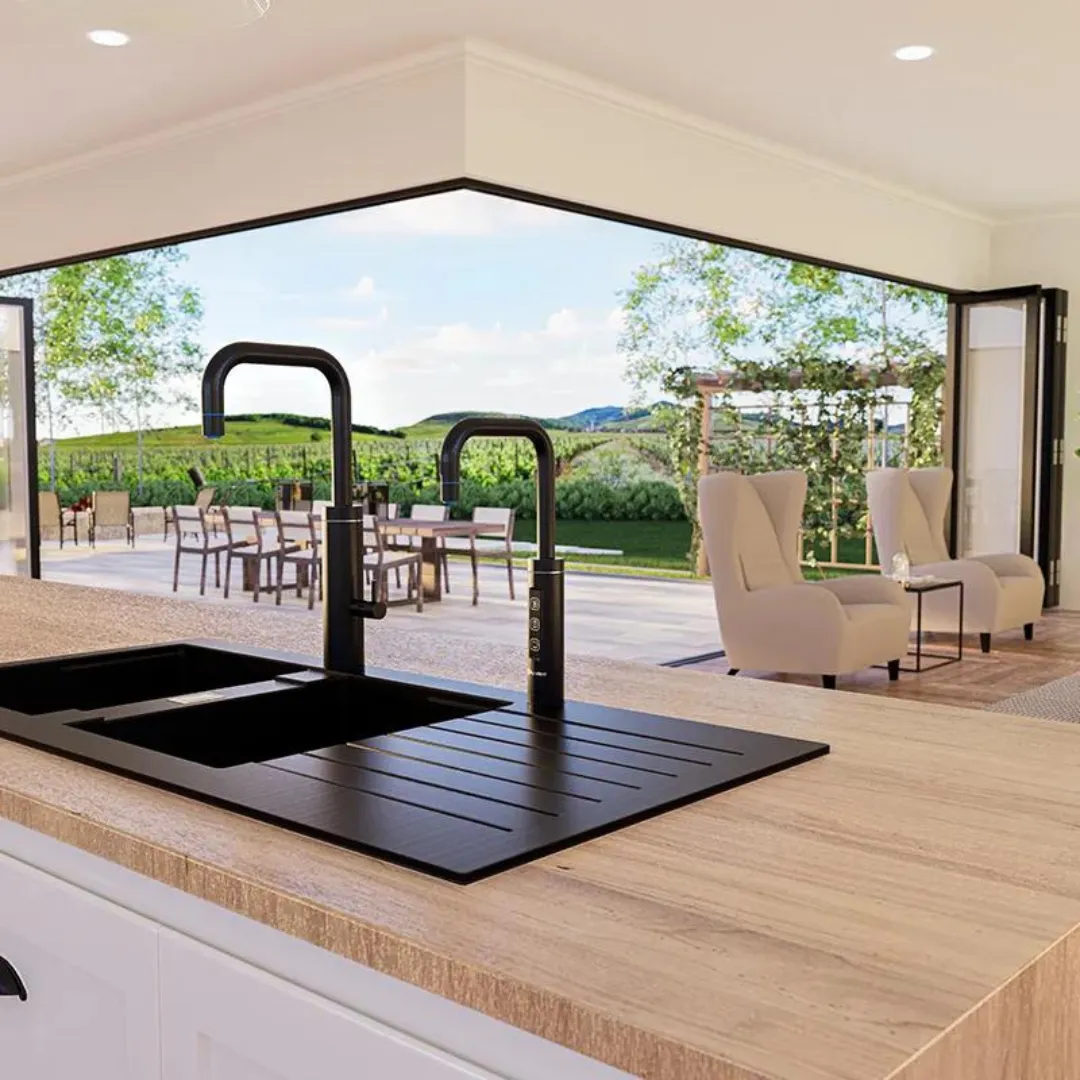

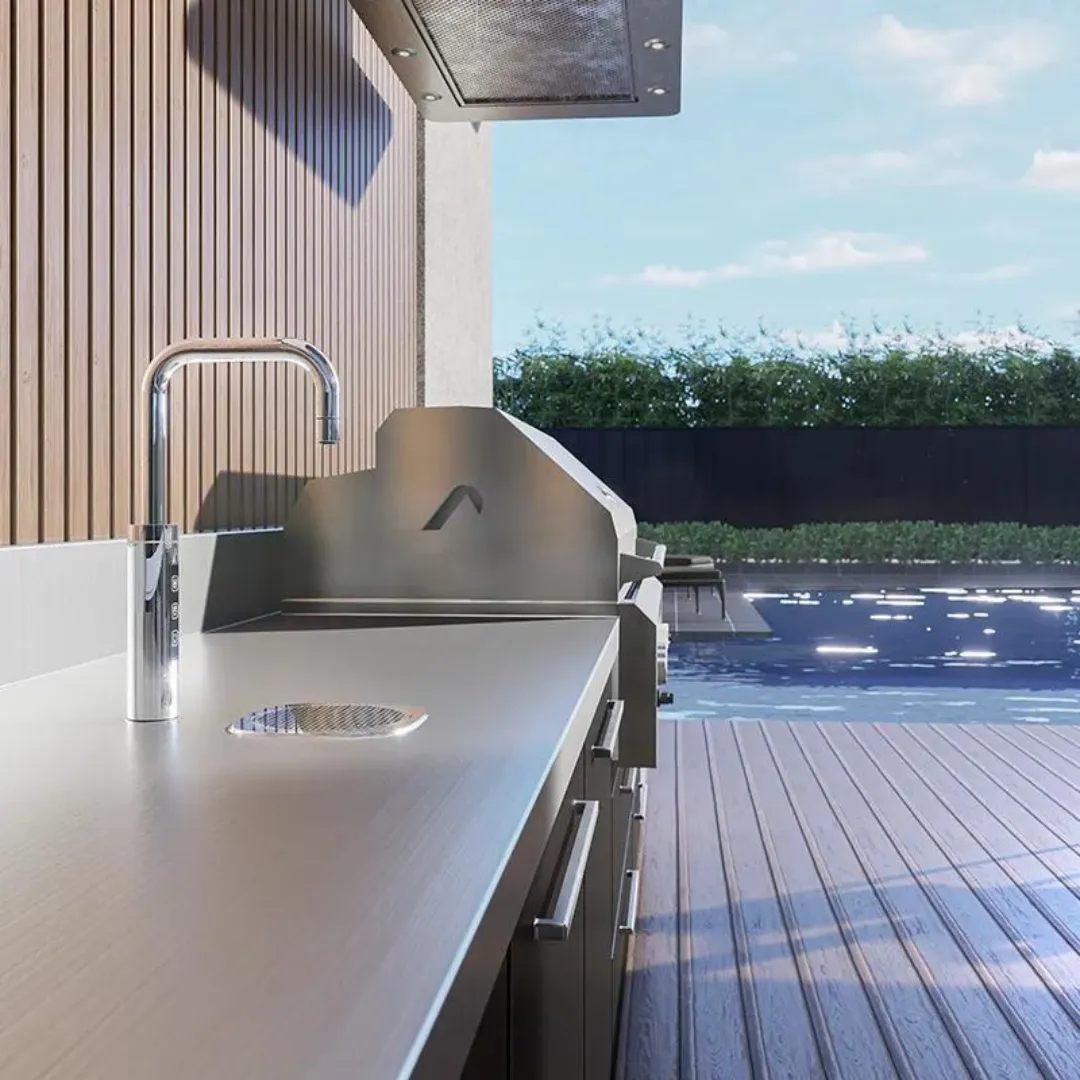

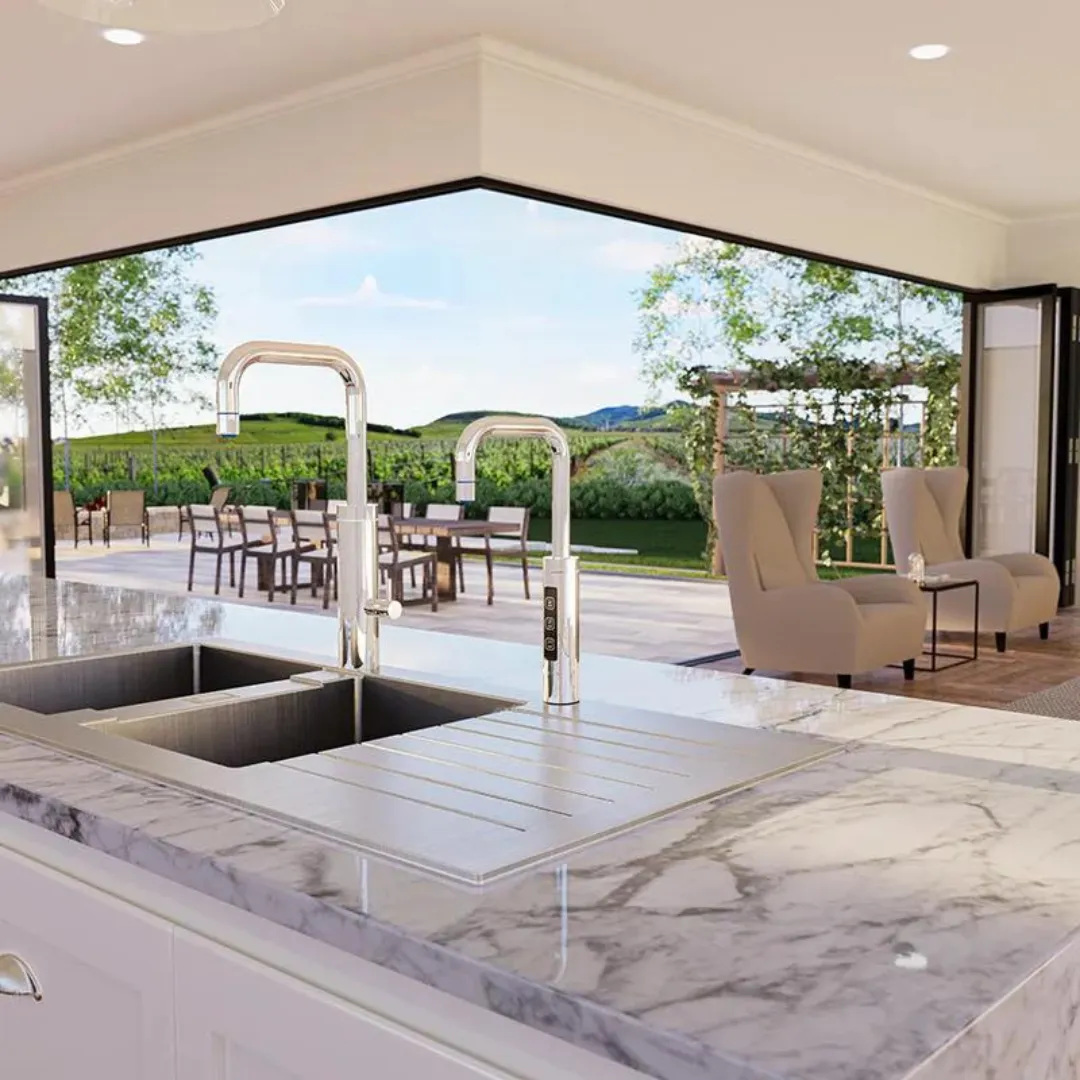

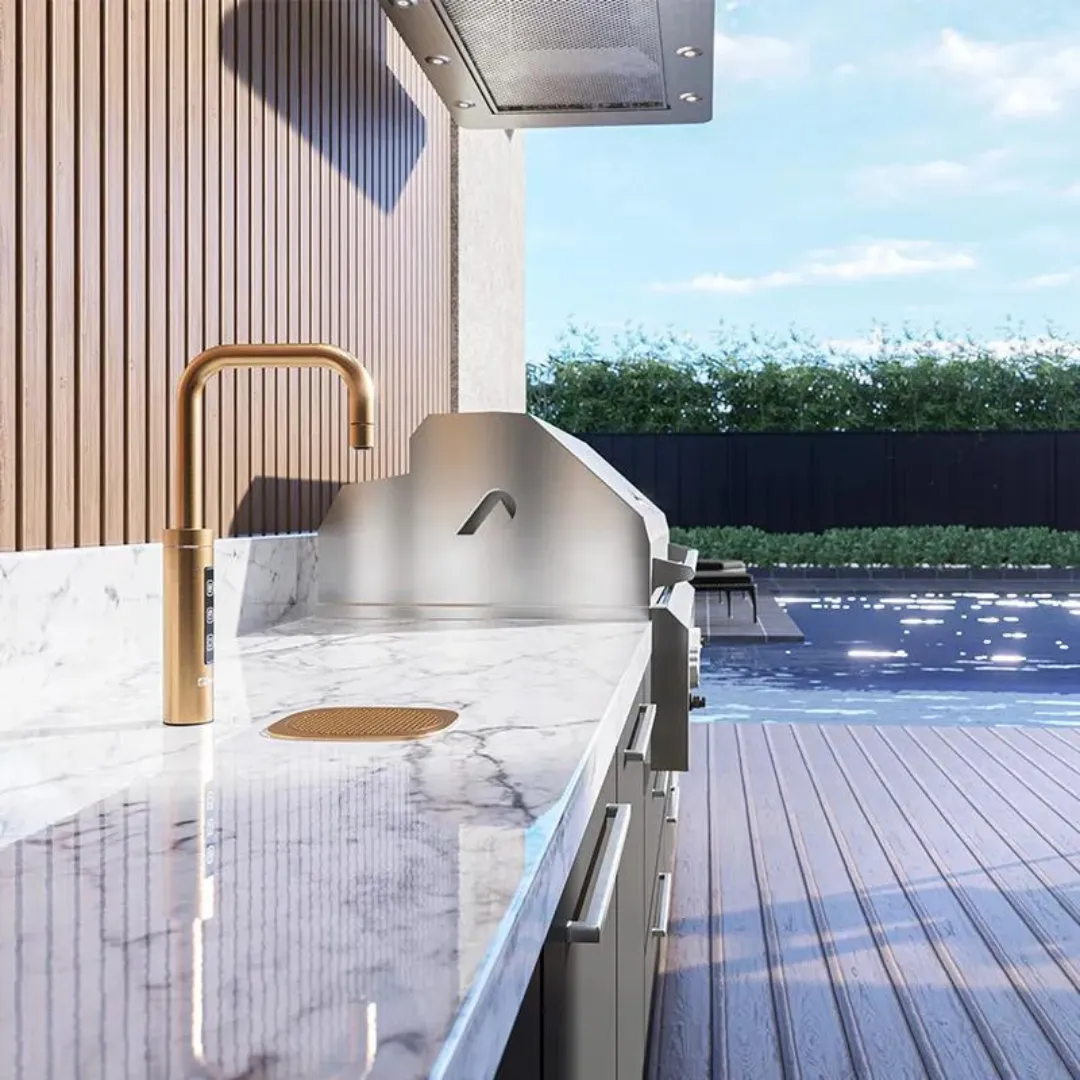

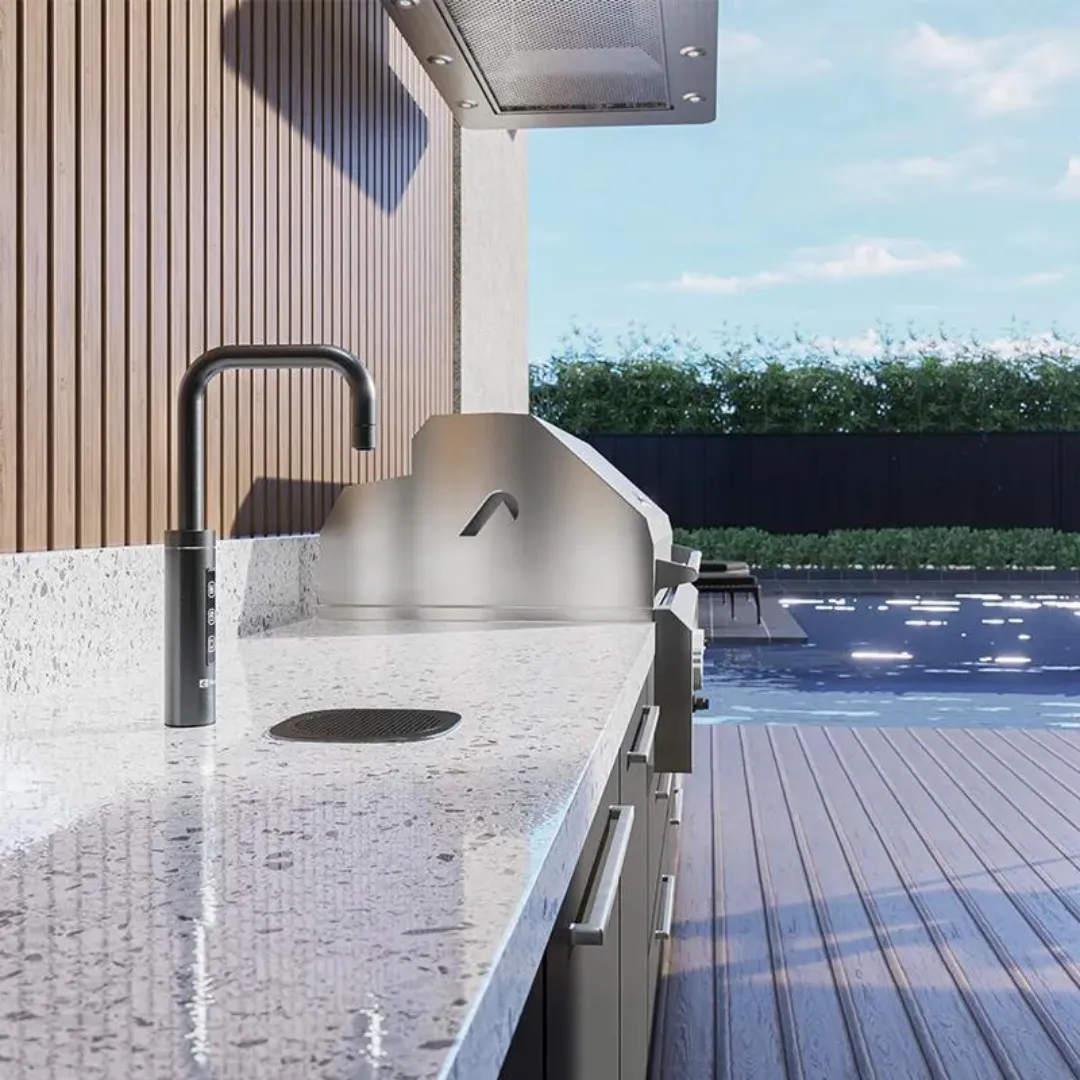

- Ideal for bar or outdoor kitchen

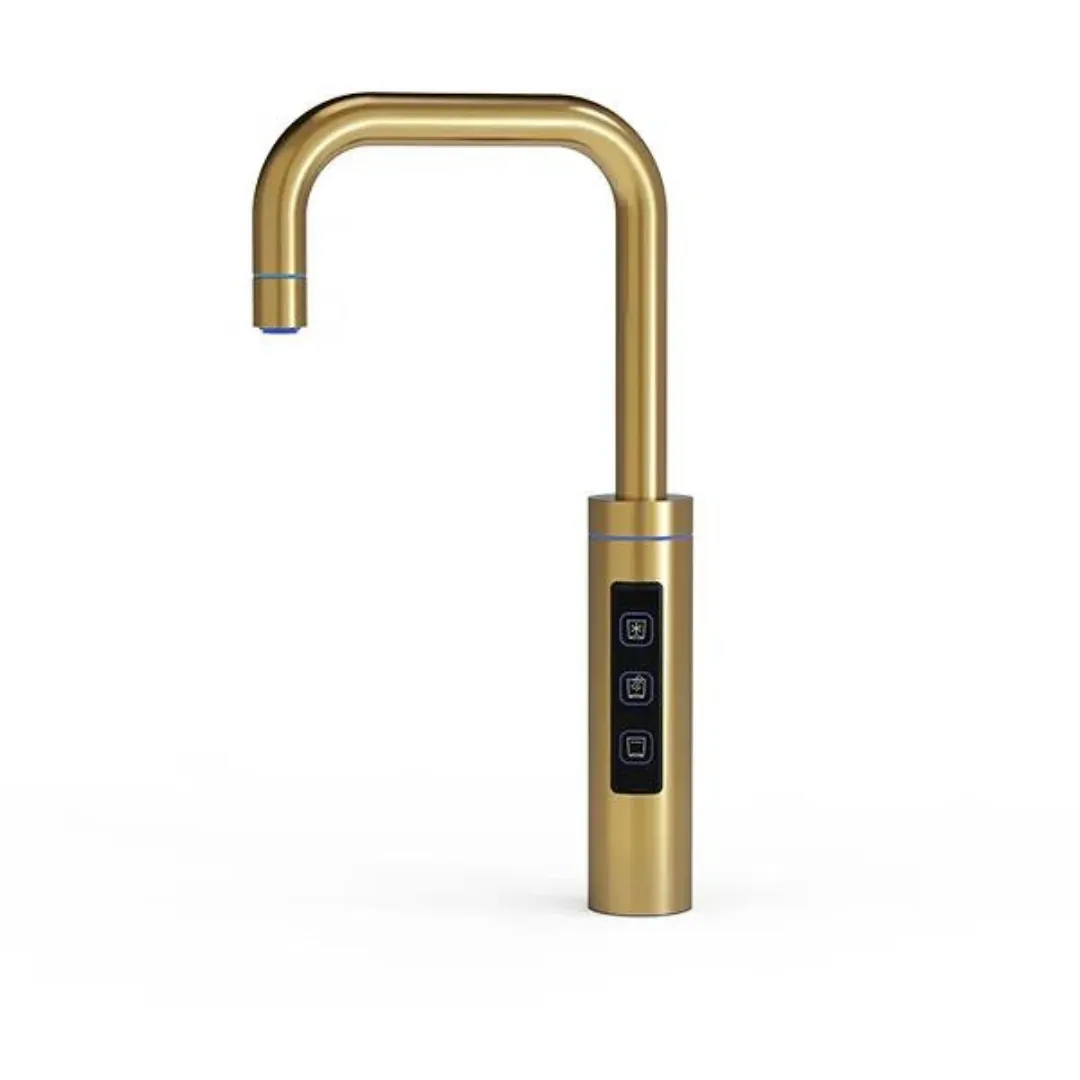

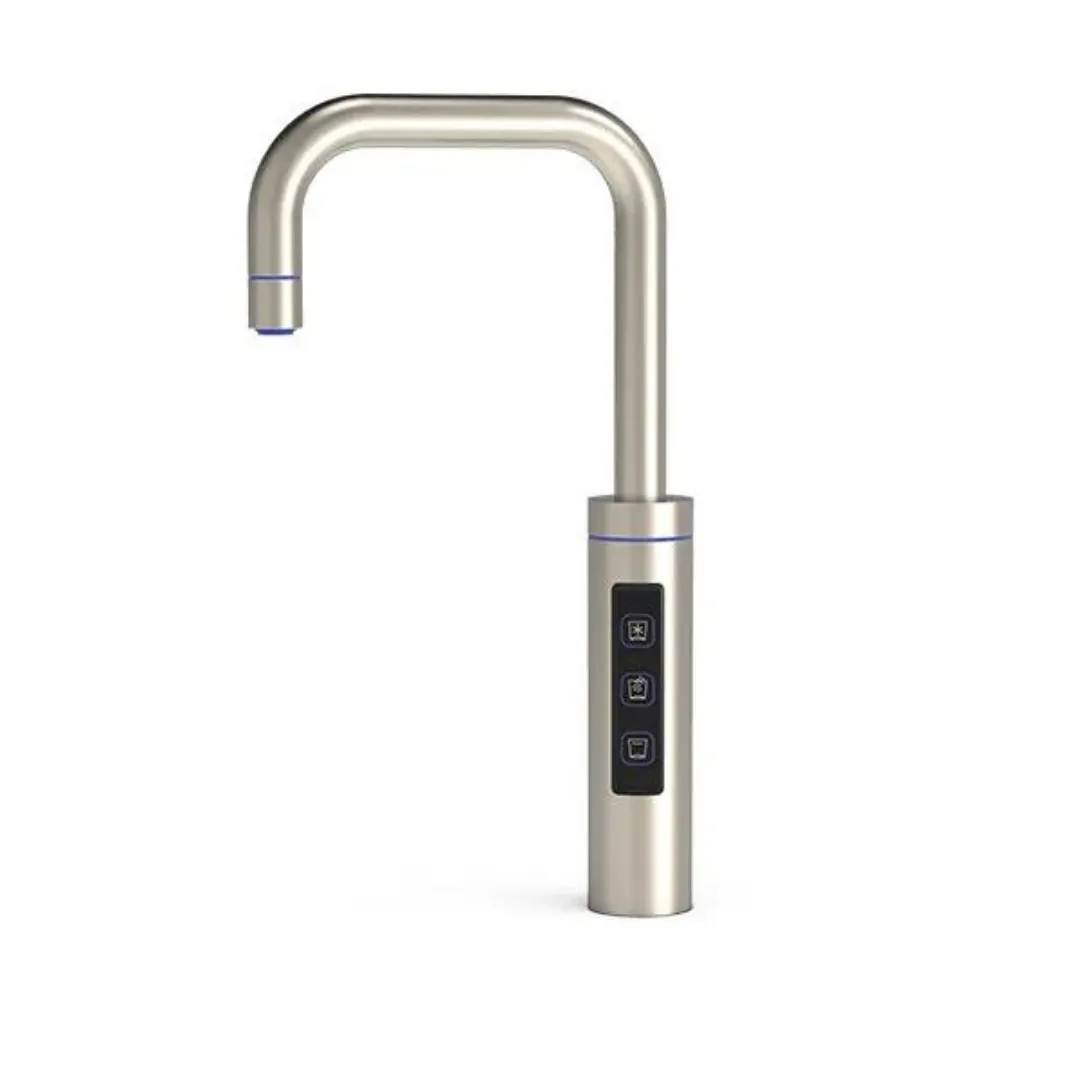

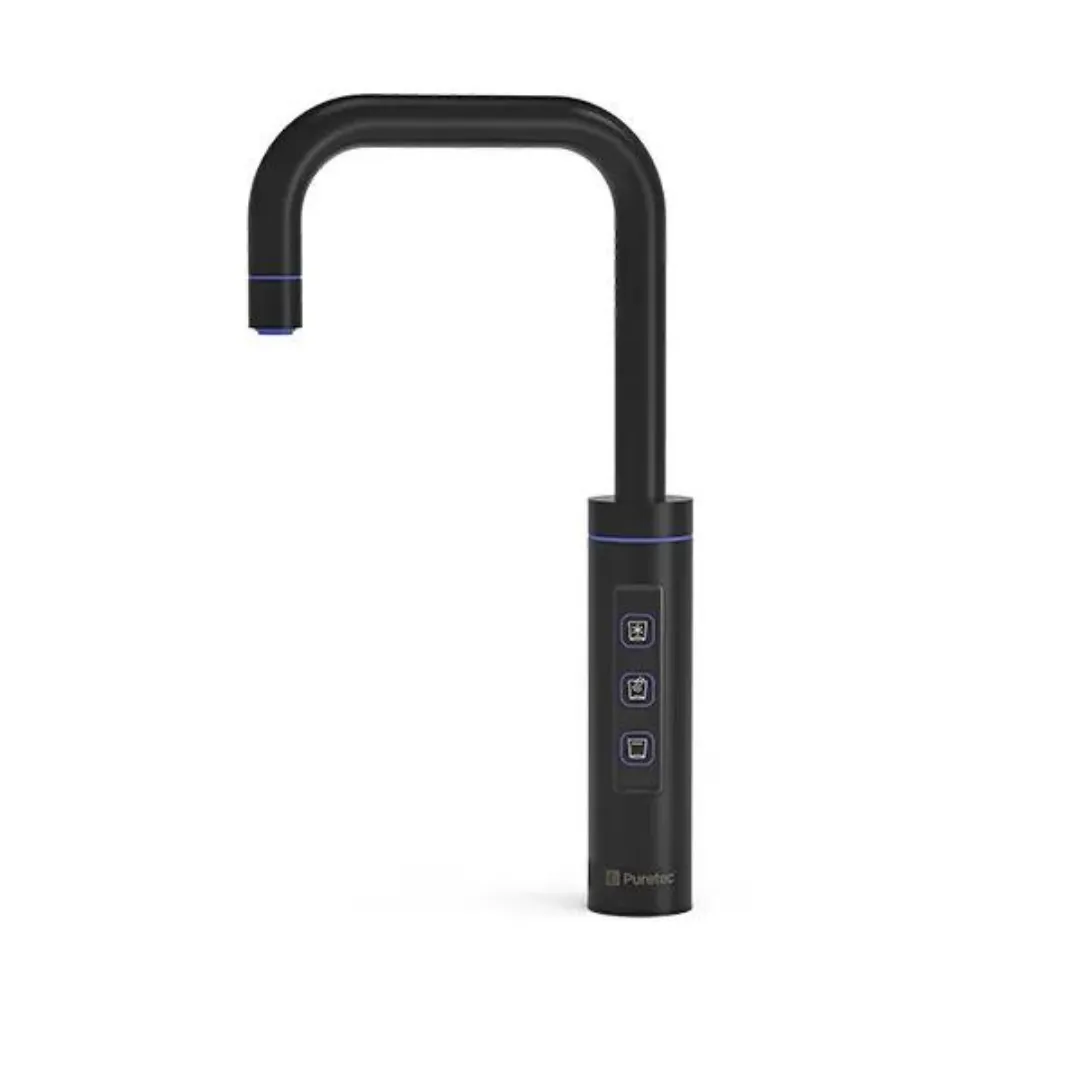

- Designer tap with LED & soft touch panel

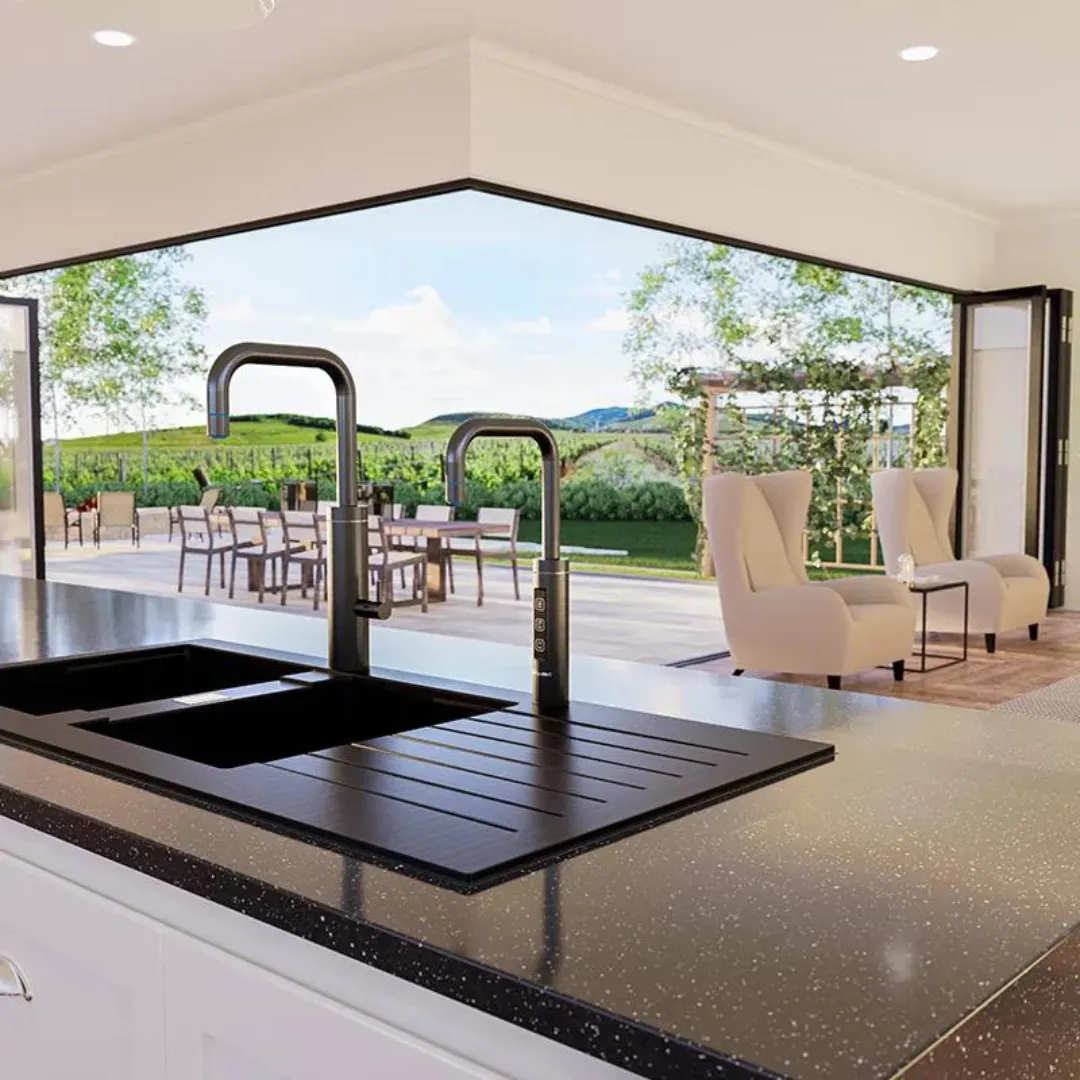

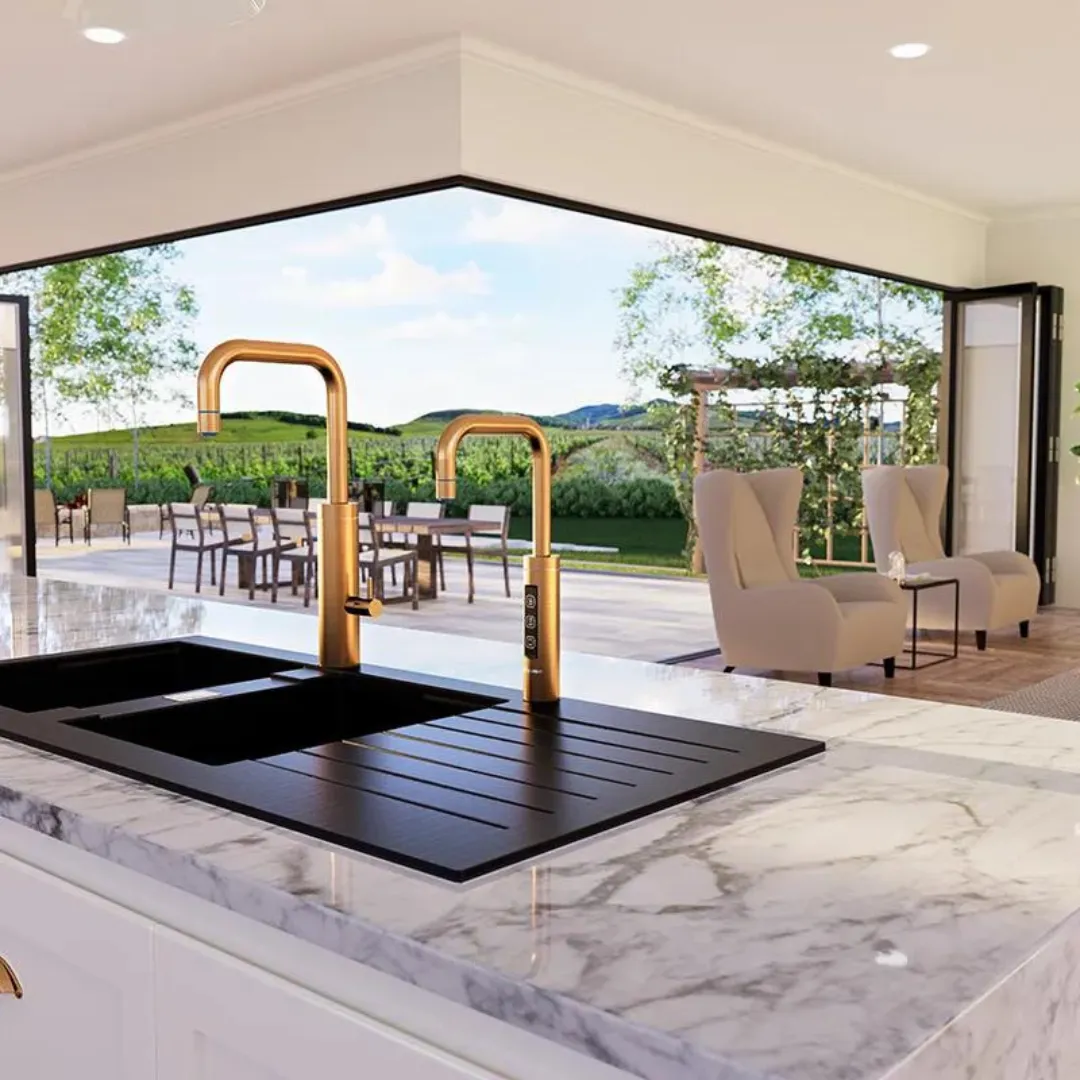

The SPARQ-S5-BK domestic system gives you the luxury of filtered sparkling or still water, right in the heart of your home or office. A simple touch on the stylish LED panel will give you filtered sparkling or still water, chilled to perfection. The SPARQ-S5-BK is an object of prestige. With sleek lines, elegant styling and the luxury of sparkling water on tap, it is the perfect finishing touch to your kitchen or entertaining area.
Filtration Technology
The Sparq S5 system uses Ultra Z Filtration Technology to reduce unwelcome elements in your water. With 3 levels of filtration, the cartridge filters out sediment down to 0.1 micron* as well as filtering out the bad taste, odour, chlorine and protects against cysts and bacteria such as E. coli. Leaving you with healthy, great tasting, clean, safe and pure water.
Carbonation system
Once the water has been purified, it can be delivered either sparkling or still. If sparkling water is selected, the system injects CO2 gas into the water stream as it is dispensed. This gives you chilled, fresh water with just the right amount of sparkle. The CO2 canister is easy to replace and usually lasts between 9 to 12 months, depending on individual use.
Chilling the water
The SPARQ S5 includes a built-in cooling system that chills the water down to 2°C for a refreshingly cold drink. You can choose between ambient or chilled when dispensing still water. The sparkling water is delivered chilled only.
Features:
- A choice of filtered sparkling, chilled & ambient water, straight from the tap.
- Soft touch buttons on the stylish LED panel.
- Compact under sink system.
- Sediment, dirt and other particles filtered down to 0.1 micron* including Giardia and Cryptosporidium cysts.
- DIY quick-twist cartridge change.
- Using Ultra Z Filtration Technology, the Z1-R cartridge has the ability to protect against cysts and bacteria such as E. coli. Reduces Trihalomethane (THM’s).
- Provides pure, safe, filtered water, free of chlorine.
- The SPARQ S5 includes a built-in cooling system that chills the water down to 2°C for a refreshingly cold drink.
- WaterMark approved.
| Replacement Cartridges | Z1-R |
| Filtration System | Ultra Z Technology, 0.1* micron |
| Capacity | 23,000 L |
| Replacement CO2 & Cartridge Kit: | SPARQ-S5-KIT |
Replacement CO2 Canister: | SPARQ-CO2 (single) |
Chilled Water Flow | 100 glasses/hourˇ |
Min/Max Pressure | 138 - 500˜ kPa |
| Min/Max Air Temperature | 2°C - 50°C (protect from freezing) |
| Ambient Temperature | 10°C |
| Power Requirements | 220-240 V / 50 Hz |
| Maximum Power Consumption | 100 W |
| Tap Dimensions | 350 (h) x 197 (w) mm |
| Appliance Dimensions | 390 (h) x 230 (w) x 370 (d) mm |
| Filter Dimensions | 290 (h) x 93 (w) x 110 (d) mm |
| Weight | 18 kg |
| Water Connection | 1/2” BSP (1/4” tube) |
| Water Supply | Mains/Towns Water Supply Only |
| Required Hole for the Tap | 26 mm |
| Warranty | 2 years^ |
| Standby Power Consumption: | 2 W |
*Micron rating is nominal.ˇGlass size is based on 200ml. ˜Where line pressure exceeds 500 kPa, an approved pressure limiting device must be installed to comply with Australian & New Zealand Plumbing Standards. (Ref. AS/NZS 3500.1:2021, Clause 3.3.4). ^2 year warranty is 1 year parts and labour plus 1 year parts only. Excludes consumables. Use only genuine Puretec cartridges and replacements.
