UV Guard CWP30 Dual Stage Ultraviolet 10" x 4.5" Water Filtration System (42LPM) for Medium-Large Houses
| DOWNLOAD PRODUCT BROCHURE |
UV Guard CWP-Series provides comprehensive water purification for safe use in homes or commercial facilities. It employs a 3-stage process of filtration, absorption, and UV disinfection to eliminate sediment, bacteria, and other pathogens and improve overall taste, clarity, and odour.
The CWP-Series includes compact and weather-resistant systems that are user-friendly and low-maintenance. With natural water disinfection, there is no need for harsh chemicals, making it a safer and more sustainable option for treating drinking water. Not only does it provide long-term benefits, but also real cost and time savings for both residential and commercial purposes.
Compatible with rainwater. The UV disinfection system provides exceptional results for various applications in industrial, commercial, and domestic settings.
FEATURES
- Destroys 99.99% of pathogens including E. Coli, Cryptosporidium and Giardia making it safe for drinking
- Removes sediment and improves taste, colour and odour of rainwater, bore water and town water
- Corrosion-resistant: 316L Stainless-steel bracket and lockable cover
- Premium twin filter housings with pleated washable filter and silver impregnated carbon block filter
- Australian WaterMark-certified 316L stainless steel UV reactor with lamp operation view port and digital controller
- Pre-assembled for quick 'plug & play' installation
- Inlet: 1" Female BSP (25mm)
- Outlet: 1" Male BSP (25mm)
- Maximum Pressure 875 kPa
- Maximum Flow Rate: 78 lpm
- Minimum Flow Rate: 31 lpm
- 30W UV Lamp
- IP Rating: IP54
- Power consumption: 33W
- Power requirements: 240v, 50-60Hz - 1 standard GPO required
- Maximum Temperature: 50ºC
STAGE 1: SEDIMENT FILTRATION
- 20 micron food grade pleated washable filter
- Removes common water impurities such as slit, dirt and rust
- Maximizing surface area to extend filter life and reduce replacement needs, these Pleated Sediment Cartridges are also reusable and cost-effective. Ideal for rainwater filtration systems, these cartridges feature pleating that ensures efficient filtration.
STAGE 2: ABSORPTION
- 5 micron silver-impregnated antibacterial carbon
- Silver-impregnated antibacterial carbon block filter improves taste, odour and clarity whilst preventing bacteria from establishing
- Experience the benefits of fresh, clean water with enhanced taste and health for you and your loved ones. Ideal for household use, this filter guarantees dependable performance and enduring strength.
STAGE 3: UV DISINFECTION
- 30W UV lamp
- UV Reactor - 316 Stainless Steel
- Chemical-free process that destroys bacteria and other harmful pathogens in the water
- No pathogen is known to be immune to UV Disinfection
- UV Disinfection destroys 99.99% of pathogens including E. Coli, Cryptosporidium and Giardia making it safe for drinking.

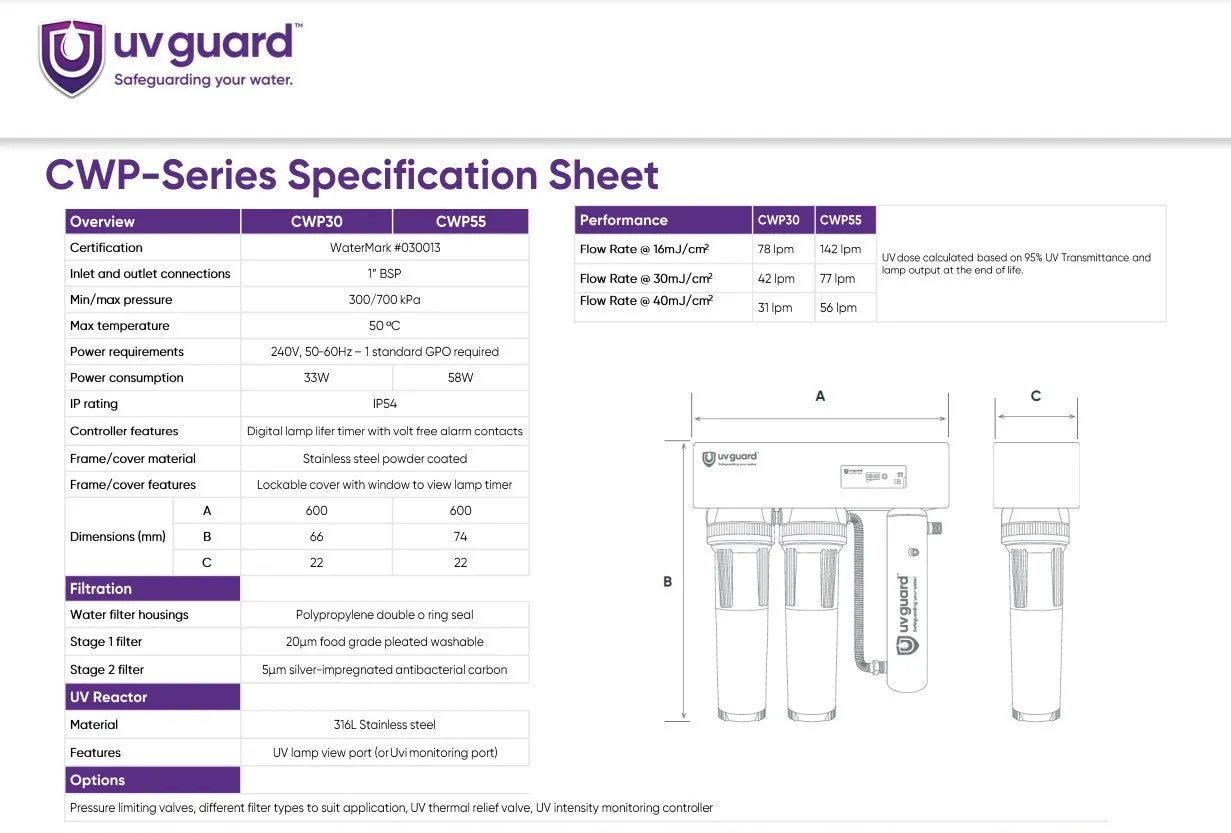

DIMENSIONS
- Length: 600mm (24")
- Width: 220mm (8 1/2")
- Hieght: 660mm (26")
