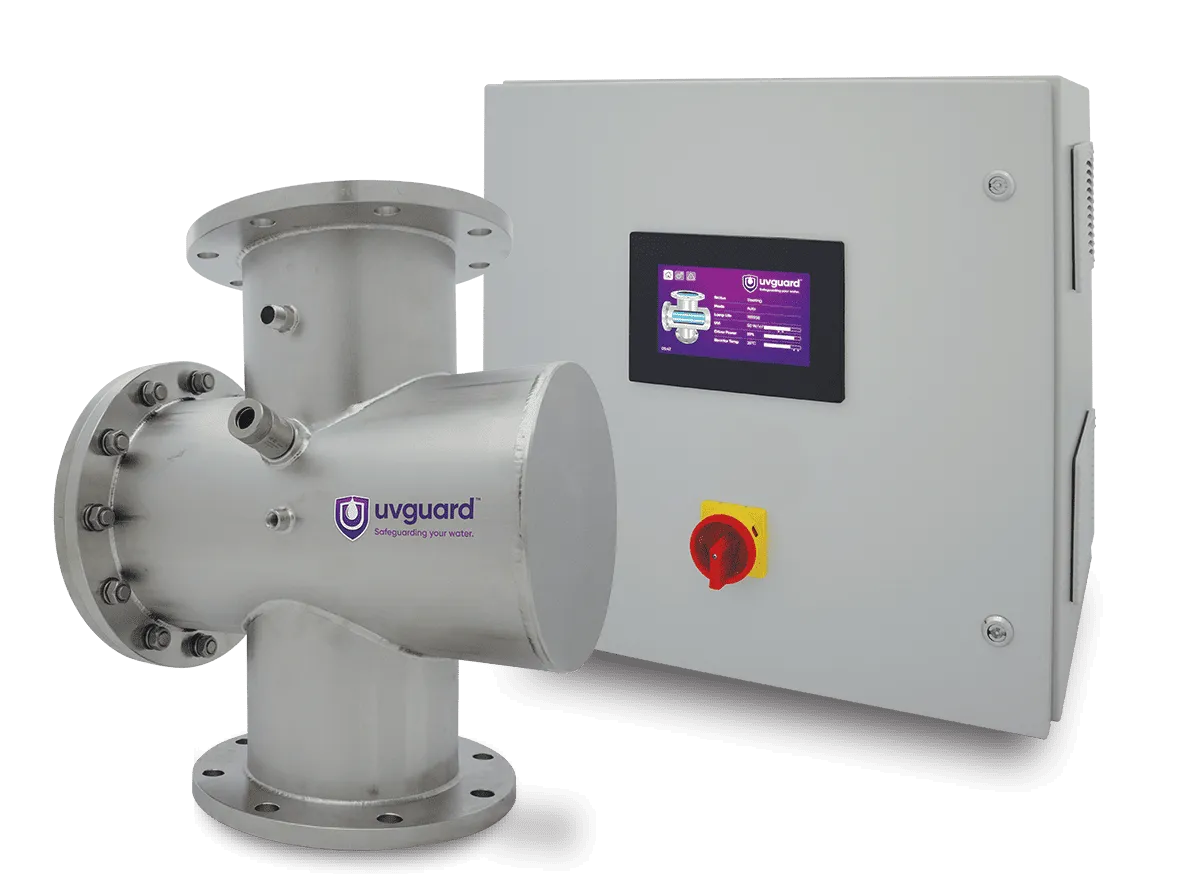

UV-Guard MPX-Series Commercial Pressure UV System
| DOWNLOAD PRODUCT BROCHURE |
The UV-Guard MPX-Series provides efficient, medium pressure UV systems for flow rates up to 1000m³/hr. Its variable power polychromatic UV lamp drivers allow for market-leading efficiency and smooth automatic dimming in both 'Optimized' and 'User Profile' power modes. This series is suitable for various applications such as commercial swimming pools, water features, industrial process water, wastewater and potable water treatment.
FEATURES
- Commercial swimming pool chloramine destruction at flows from 10-800m³/hr
- Drinking water disinfection at flows up to 1200m³/hr and beyond
- Intelligent 'Optimised' mode for automatic variable power
- Large 7" HMI touchscreen for easy operation & monitoring
- Small footprint ideal for horizontal or vertical configurations
- Interlock UV Lamp safety device & UV Reactor temperature management system
ADVANTAGES
- 7" HMI touchscreen - monitor system performance and manage settings with ease
- Intelligent 'Optimised' mode - smooth automatic variable power of the UV Lamp according to changes in water quality
- Customisable 24-hour 'User Profile' mode - pre-define power settings for each hour of the day
- Standard 'Max' and 'Eco' modes - manually change the UV Lamp output according to treatment requirements
- Time stamped error log - check historical errors to assist with troubleshooting
- Interlock UV Lamp safety device - prevents UV Lamp from being ignited outside of UV Reactor
- Two-step UV Reactor temperature management - reduces power of UV Lamps to manage overheating and shuts down if critical temperature is reached
- Convenient maintainance - UV Lamps and Quartz Sleeves accessible from one end of UV Reactor
PERFORMANCE
- Market leading medium pressure UV Lamp technology - polychromatic UV spectrum for disinfection and/or breakdown of oxidants and combined Chlorine
- Advanced variable power Electronic UV Lamp Drivers - greater efficiency and less power stepless variable power 14% - 100%
- Optimised UV Lamp configuration - designed using Computation Fluid Dynamics (CFD)
- In-line UV Reactor design - hydraulically efficient to minimise headloss
- Certified ONORM UV intensity sensor - accurate UV intensity measurement to indicate water quality deterioration and control UV Lamp dimming functionality
APPLICATIONS
- Agriculture & Horticulture
- Aquatics
- Chlorine & Chloramine Destruction
- Drinking Water
- Food & Beverage
- Industrial & Manufacturing
- Medical & Pharmaceutical
- Mining
- Ozone Destruction
- Storm Water
- Total Organic Carbon Reduction
- Warm Water & Legionella
- Wastewater
